Description
Fast, efficient core drilling system ideal for narrow and difficult to access places
| Hole Diameter | Speeds (RPM) | Usability | Weight | Power |
|---|---|---|---|---|
 |
 |
 |
 |
 |
| 6 Inches | – 600 – 1300 – 2800 | Hand-HeldORRig-Mounted | 16 lbs. | 110 V / 15 Amp |
The best Diamond Core Drill in its class!
The Diamond Core Drill combines a robust all-aluminum housing with a compact size and powerful 15 AMP motor. It’s heavy-duty design and power reserve make it suitable for continuous use.
Use hand-held for up to 3-1/4″ diameter and/or rig-mounted for up to 6″ diameter. The mechanical 3-speed gearbox allows the operator to select the best speed for the core bit diameter. The result is optimum drilling and extended tool life.
All models include a built-in leveling bubble, carrying case, safety slip clutch, water swivel, overload signal, and Ground Fault Interrupter. Connecting threads of 5/8″ x 11 UNC, 1-1/4″x 7 UNC and G1/2″ fit all standard core bits.
Optional accessories include anchor stand, (with or without vacuum pump), centering aid (part no. 35846), portable water tank, water collection ring kit, G 1/2″ adapter and Unicore Diamond Core Bits. See Accessories for anchor stands, centering aid, portable water tank, and water collection kit.
Use:

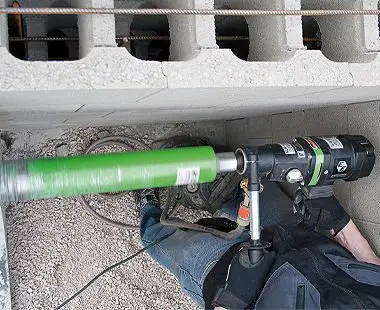

- Wet drilling in reinforced concrete, natural stone and asphalt especially for narrow, tough-to-access places, e.g. in pits
- Aluminum housing suitable for civil engineering
- Sanitary, heating and ventilation construction, civil engineering, landscape construction
 Water Supply Control |
 5/8″x11 Part #: 258 992 1-1/4″x7 Part #: 258 991 |
 Gardena Hose Connector |
