Description

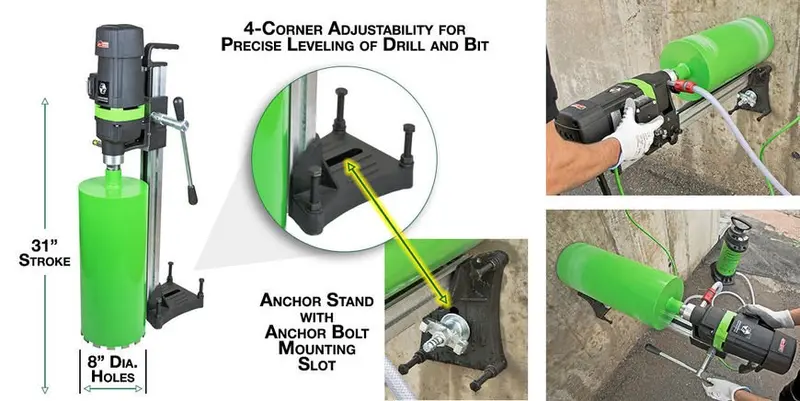

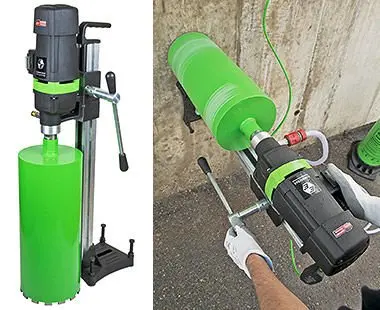

The DBE 201 is industry’s most powerful, compact, and lightweight core drill rig. At 34 lbs., this diamond core drill rig’s lightweight and streamlined design makes it extremely portable and easy to maneuver for any concrete drilling application. With a powerful 2500 W (18 Amp) motor, the DBE 201 leads its class in hole capacity – drilling up to 8″ diameter holes. At CS Unitec, the value is in the engineering: with a user-friendly design and the standard safety features, including a mechanical slip clutch and protection from current overload. This core drill rig delivers increased safety, productivity, and user comfort.
| Max. HoleDiameter |
Speed |
Use |
Product Weight |
Power |
 |
 |
 |
 |
 |
| 8 inches |
450 RPM |
Rig Mounted Only |
34 lbs. |
110 V / 18 Amp |
Benefits:
- Compact & Lightweight:
- Only 34 lbs.
- Motor and rig as complete unit

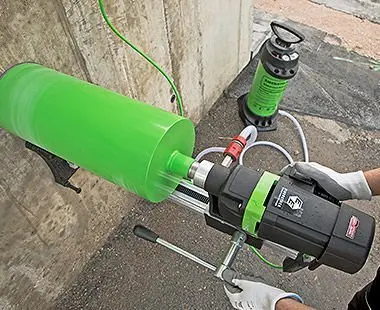

- Integrated water supply
- High Durability:
- Oil bath gearbox for optimal lubrication
- Stainless steel spindle
- Motor overload protection
- Spring-loaded carbon brushes – motor protection
- Reduced Fatigue:

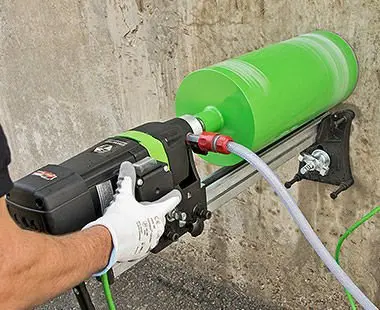

- Anchor mounted stand for easy drilling
|
- Economical:
- Large concrete drilling capacity – 8″ diameter
- Streamlined, robust design
- Best power to weight ratio
- Increased Safety:
- Mechanical safety slip clutch
- GFCI Overcurrent protection
- Anchor mounting
|
Applications:
- Wet drilling into reinforced concrete, concrete, natural stone, and asphalt
- Ideal for plumbing, mechanical and electrical construction, as well as landscape construction and civil engineering
