Description
| Max HoleDiameter | Speeds | Uses | Weight | Power |
|---|---|---|---|---|
 |
 |
 |
 |
 |
| 8 inches | 0-510 RPM0-1150 RPM0-2500 RPM | Hand-Heldor Rig-Mounted | 15 lbs. | 110 V / 19.5 Amp |
The most powerful hand-held Diamond Core Drill in the industry!
Features:
- Holes up to 8″ diameter hand-held dry drilling in masonry, brick and block
- Hand-held wet drilling up to 3-1/4″ diameter in concrete
- Rig-mounted drilling up to 6-3/8″ diameter in concrete
- Mechanical Slip Clutch Design
- 19.5 Amps with 3 mechanical speeds
- Load Speeds: 0-510 / 0-1150 / 0-2500 RPM

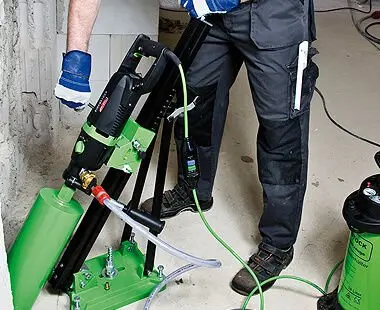

Model ETN 162/3 P is a versatile Wet or Dry Diamond Core Drill with a Water Swivel and Dust Extraction Port built directly into the spindle. It easily connects to a vacuum for dust extraction. The drill stand mount allows the operator to switch from hand-held to stand-mounted drilling quickly and easily. The drill stand is adjustable up to 45°. Core drill includes drill bit connections 1-1/4″ x 7 UNC and 5/8″ x 11 UNC.
Optional accessories include anchor stand (with or without vacuum pump), centering aid, water collection ring kit, portable water tank, and Unicore Diamond Core Bits.
| Concrete (Wet) | Gear 1: 3-1/4″ to 6-3/8″* Gear 2: 1-3/4″ to 3-1/4″ Gear 3: 1/2″ to 1-3/4″ |
| Brickwork (Dry) | Gear 1: 4-1/4″ to 8″* Gear 2: 2-1/4″ to 4-3/4″ Gear 3: 1/2″ to 2-1/4″ |
| *with drill rig |
Uses:
- Wet drilling in reinforced concrete, asphalt, and natural stone
- Dry drilling in limestone, brick, block and other abrasive materials
- Ideal for plumbing, mechanical and electrical construction, as well as civil engineering and landscape construction
